Aluminium Profile System

Snap Frames

Click-open aluminium snap profiles for fast, tool-light graphic changes — available in lit and non-lit configurations.

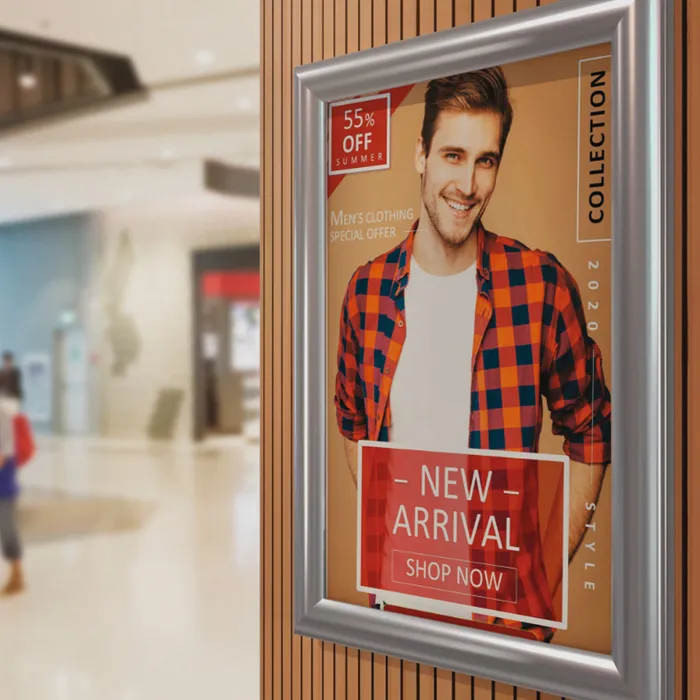

PL25EL — Non-Lit Snap Frame aluminium profile

PL25EL

PL25EL — Non-Lit Snap Frame

A lightweight profile for making small non-lit snap frames, with a 25mm front cover and a flip base-and-cover design secured by click accessories.

  • Material: Aluminium Alloy 6063-T6
  • Anodising: 15–20 microns
  • Length: 12.25 ft (3733.8 mm)
  • Base profile depth: 5 mm
  • Media: Single-sided rigid sheet or paper
  • Installation: Wall-mounted, with corner accessories

Colours: Black, Silver, White, Mill Finish, Custom Coating

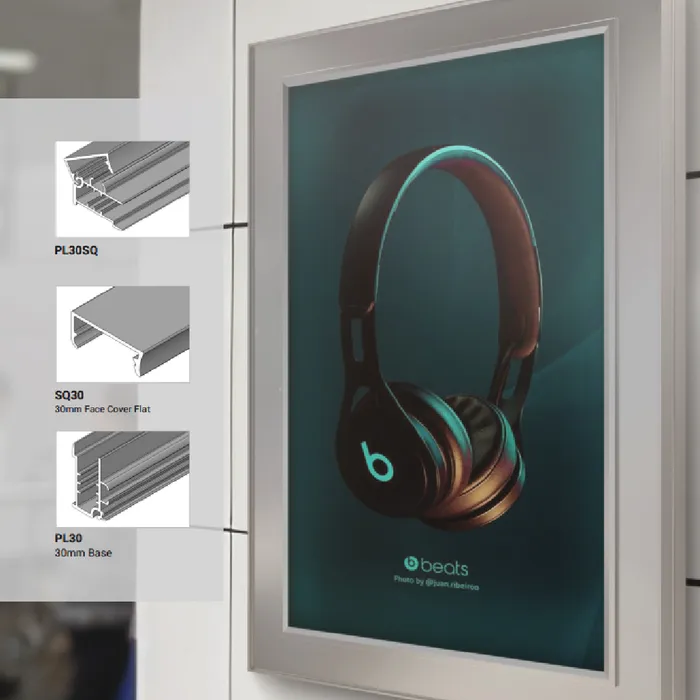

PL30SQ — Lit Snap Frame aluminium profile

PL30SQ

PL30SQ — Lit Snap Frame

A heavy-duty profile for large lit snap frames with a 30mm front cover, featuring separate slots for light-guide panel and foam sheet.

  • Material: Aluminium Alloy 6063-T6
  • Anodising: 15–20 microns
  • Length: 12.25 ft (3733.8 mm)
  • Depth: 12 mm — accommodates foam up to 2mm, LGP up to 10mm, LED strips
  • Media: Translite, single side, edge-lit
  • Installation: Wall fitting

Colours: Black, Silver, White, Mill Finish, Custom Coating

Let's Build Something

Ready to Spec Snap Frames?

Share your sizes, media type and installation requirement — we'll recommend the right profile.
